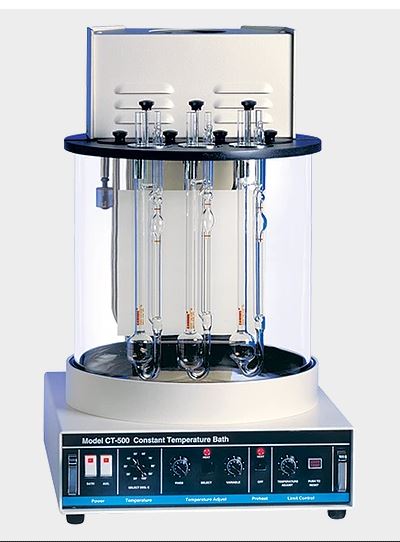

(Cannon Model CT-500)
Specifically designed for precise viscosity determination with glass
capillary viscometers, the H-1720 baths offer superior temperature control
to 100°C. The H-1720 offers a 12″Dia x 12″H (305mm x 305mm). bath jar
that can accommodate most viscometers.
These baths maintain accurate temperature control of ± 0.01°C within
the range of 20°C to 100°C (±0.01°C), providing the temperature sensitivity
required by ASTM D445 for kinematic viscosity measurements with glass
capillary viscometers. Two electric heating elements inside the bath rapidly
heat the medium to any desired temperature within the range.
The H-1720 bath chamber is a cylindrical clear glass vessel
12″ d ia x 12″H (305mm x 305mm). A stainless steel baffle located
in the center of the bath provides a plain reflective background to aid
in viewing instruments. The top cover contains seven round holes 2″ (51mm)
in diameter for insertion of viscometer holders, allowing up to seven viscosity
measurements to be made simultaneously. Covers are supplied for capping
unused holes. Two additional holes 10mm in diameter, are provided for thermometers.
All wetted parts of the Constant Temperature Bath are made of stainless steel or glass.
The frame is fabricated from heavy aluminum and coated with a corrosion-resistant epoxy
finish. Viscometers, holders, bath oil, and thermometers must be purchased separately.
Dimensions: 16″w x 14.25″d x 24″h (407 x 362 x 610mm).
