Creep Loading Apparatus

CL10365

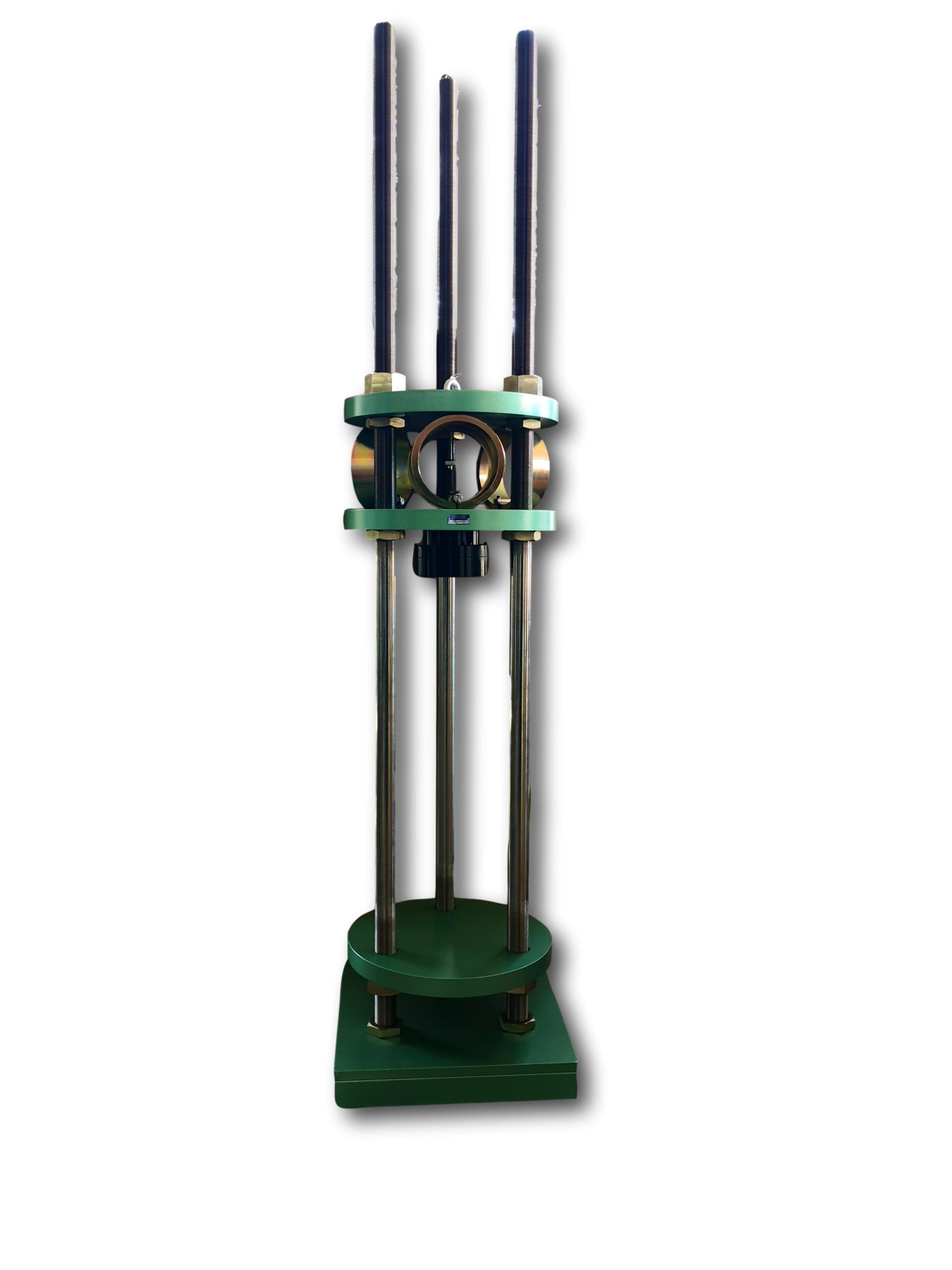

CREEP RIG FRAME 700KN or 500KN 5 CYCLINDER
Consists of a three column straining frame with upper swivel platen.
A second upper cross member is supplied to restrain reaction springs.
The hydraulic loading apparatus is fitted below a lower cross member.

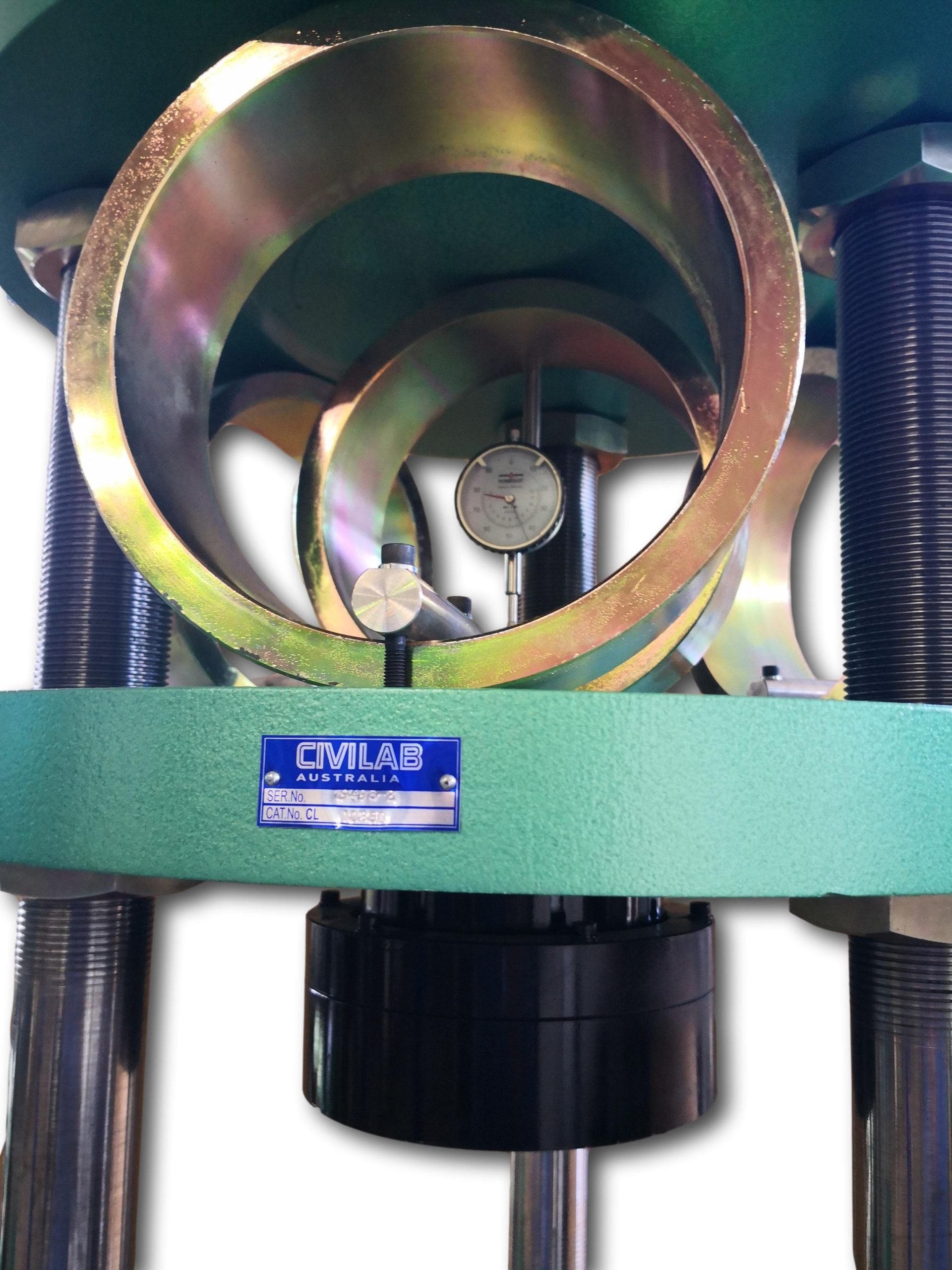

Load indication is by a dial gauge mounted between the reaction springs.
The load is locked by three hex nuts between the base and the lower cross member.
Overall height is 2400mm width between columns is 200mm.
Base dimensions are 600 x 600 mm.

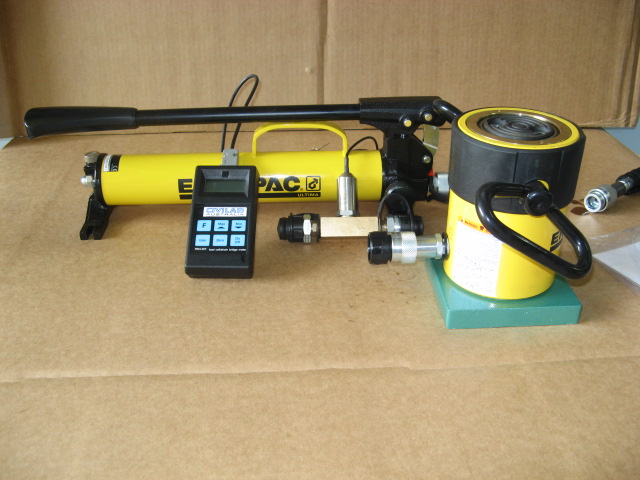

Plate Bearing Loading Set required – CL22191
