Automatic Oedometer Systems (ACONS Pro)

The Automatic Oedometer Systems – ACONS Pro allows you to carry out a complete consolidation test, without operator intervention, reducing testing time by up to 50%.

The ACONS Pro utilises a stepper motor, eliminating the need for weights, or a compressed air supply.

Our latest electronics on the Automatic Oedometer Systems allow for rapid application of target loads, with the flexibility to adjust PID for a variety of samples, ranging from stiff to soft soils covering all your testing needs.

Two Load Frame Options Available:

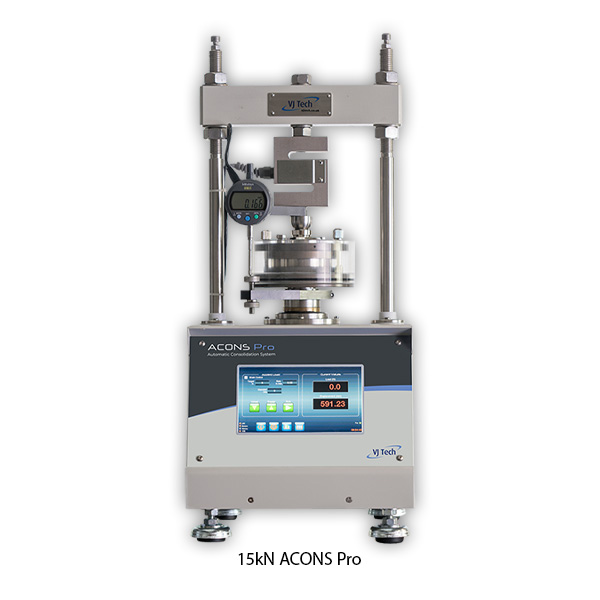

15kN

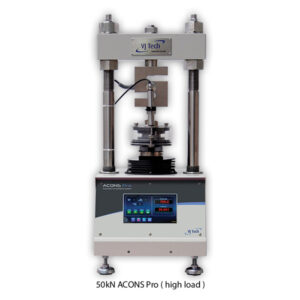

50kN

ACONS Pro Systems Datasheet

Compact design (small footprint)
Utilises a stepper motor, eliminating the need for weights, or a compressed air supply
Rapid application of target loads
Built-in logger allowing high-speed sensor data conversion (24-bit, up to 5000 samples/s)
Flexibility to adjust PID for a variety of samples, ranging from stiff to soft soils
Auto engage function to easily apply seating load
Upgradable to perform other tests such as CRS, SWCC and Triaxial
Standalone Use via Touchscreen display with data export to PC
Built-in live data table and graphs
Built-in auto protection for mechanical limits & sensor limits
Multiple Units can be controlled from a single PC via a LAN or Ethernet/USB hub
USB or Ethernet connectivity for PC Control

Maximum Frame Capacity 15 kN or 50 kN

Resolution 0.1 N or 0.1kPa and 0.001mm

Accuracy 0.15% FRO

Adjustable Displacement Rate 0.001 – 100 mm/min

Power Supply DC Adaptor (Output 24VDC, Input 90-240V, 50/60Hz, 1ph.)

Dimensions (W x D x H) 280 x 320 x 640 mm (15 kN); 320 x 400 x 770 mm (50 kN)

Weight 31 kg (15 kN); 68 kg (50 kN)

AS1289.6.6.1
